Scout M.A.D.ness | ![]() |
OIL all 4 cyl. & V-8
AIR all 4 cyl. & V-8
Fits all Scout II V8's
KIT #45605 CONSISTS OF THE FOLLOWING
16 - Hydraulic Lifters,
16 - Outer Springs,
16 - Inner Springs (Interference Fit),
16 - Chromoly Retainers (3/8),
12 - Special Spring Cups (Eliminates Machine Work on Seats),
1 Tube - Cam Assembly Lubricant.

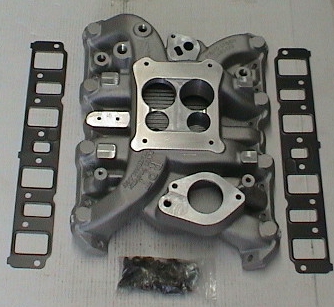

NEW Aluminum Intake Manifolds,
Spreadbore for 345/392 now available,
Sqaurebore for 266/304/345/392 now available,
Multipoint injection systems available soon,
Intake Includes Bolts & Gaskets.
Torque gains of 20 + ft/lbs,
Light weight at just 24 lbs run cooler.
ONE Piece Mounting Flanges,
16 - ga. Cold Tolled Steel Tubing,
Computer-controlled Mandrel Bent,
Painted or Chrome Plated,
Includes Reducers, Gaskets & Hardware.
All V-8 SCOUTS - #22-103 paint,
All 4 cyl SCOUTS - #22-105 paint.
ALL APPLICATIONS
69 - 80
Kits Includes: Pistons, Chromoly rings, Rod bearings, Main bearings, Cam, Cam bearings, Lifters, Timing Gears, Oil Pump Kit and all gaskets and seals.
| 304/345/392 | ||||||||
| Description | Part # | Grind | Adv. Duration | Duration at .050 | Lift | Degrees lobe centerline | Valve lash | Suggested |
| Smooth Idle. Good two cam power from 1000 to 4000 RPM | 15-106 | 256/h | 256 | 204 | .432" | 112 | .000" | 45605 |
| 262 | 208 | .424" | ||||||
| Increase low mid range torque from 1500 to 4500 RPM | 15-100 | 131-h | 262 | 208 | .464" | 112 | .000" | 45605 |
| .424" | ||||||||
| Excellent for slightly modified engines from 2000 to 5500 RPM | 15-102 | 272-h | 262 | 208 | .464" | 112 | .000" | 45605 |
| 282 | 218 | .448" | ||||||
| Recommedned for competition power from 3000 to 6000 RPM | 15-104 | 295-h | 290 | 220 | .448" | 112 | .000" | 45605 |
| 300 | 228 | .464" |
Change your points to electronic or get rid of
that expensive Prestolite Module. $89.00
Also available to replace the troublesome Holley Electronic Ignition
(aka "The Gold Box") for $99.00
Available as well for the 4-cyl w/Delco Distributor for $89.00.
Click hear to see product advertisement for The Ignitor!
Be careful when building up your IH or this is what you'll see!

Call, Write, or E-mail scoutmad@clearwire.net for any information or questions concerning International Harvester Scouts.
This Page Maintained by Mark Drake
